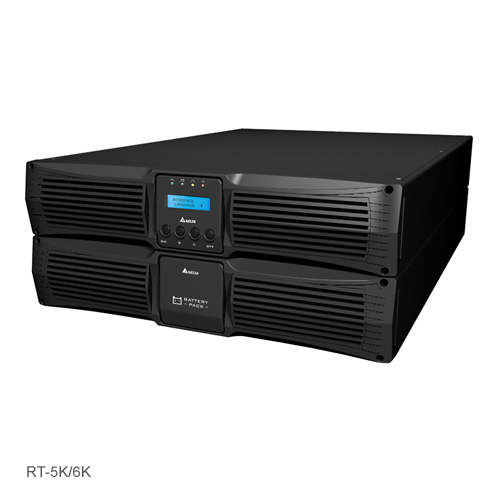

Delta 5KVA Rack Mount Ups Mall+254

SPECIFICATIONS:

• Power Rating: 5kVA /4.5kW
• Input:
  • Nominal Voltage: 200/208/220/230/240 Vac (single phase)
  • Voltage Range: 100 ~ 300 Vac*
  • Current Harmonic Distortion: < 5% (full load)
  • Power Factor: > 0.99 (full load)
  • Frequency: 40 ~ 70 Hz
  • Electrical Connection: Terminal block
• Output:
  • Voltage: 200/208/220/230(default)/240 Vac (single phase)
  • Voltage Harmonic Distortion: < 2% (linear load), <3% (non-linear load)
  • Voltage Regulation0: ± 1% (static); ± 2% (typical)
  • Frequency: 50 or 60 ± 0.05 Hz
  • Overload Capability: 106 ~ 110%: 10 minutes; 111 ~ 125%: 5 minutes; 126 ~ 150%: 30 seconds
  • Electrical Connection: Terminal block
  • Crest Factor: 3:1
• Battery & Charger:
  • Nominal Voltage: 192 Vdc
  • Charge Current:
    • Built-in: maximum 4A (adjustable);
    • Additional charger board (optional): maximum 4A (internal installation)
  • Electrical Connection: Exclusive cable
• Interface:
  • Standard: RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1
• Conformance:
  • Safety & EMC: CE, TUV, EN62040-1; CISPR 22 Class A
• Other Features:
  • Parallel Redundancy: 1+1
  • Remote Control: REPO; Remote On/Off
  • Common Battery Installation: Yes
• Efficiency:
  • AC-AC: 92% (full load)
  • ECO Mode: 96% (full load)
• Environment:
  • Operating Temperature: 0 ~ 40ºC
  • Relative Humidity: 5 ~ 95% (non-condensing)
  • Audible Noise: 54 dBA**
• Physical:
  • Dimensions(WxDxH):
    • UPS: 440 x 671 x 89 mm
  • Weight:
    • UPS: 15kg
• Warranty: 3 years on UPS
