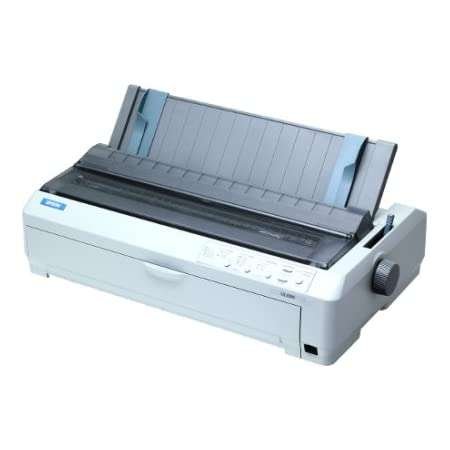

Epson LQ-2190 Dot Matrix Printer Mall
Epson LQ-2190 Dot Matrix Printer 24-pin 136 Column supports print speeds of 576 cps at 12 cpi, making the device perfect for large volume tasks. Printed images have a resolution of 360 x 180 dpi. You can print sheet paper, continuous paper both single and multi layer, labels, roll paper, cardboard, and envelopes with this device.
Epson LQ-2190 Dot Matrix Printer Bidirectional parallel, USB 2.0 Type B interface lets you print directly from your portable drives. A ribbon life of about 15 million characters ensures delayed ribbon replacement cycles, thereby bringing down the maintenance and running costs.
LQ-2190 Dot Matrix Printer 24-pin wide carriage LQ-2190 boosts a high print speed of up to 480 cps (10 cpi) makes it an ideal solution for high volume applications.
Epson LQ-2190 printer MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.
LQ-2190 printer built-in USB, parallel interface and optional network print server, the LQ-2190 is engineered for versatile connectivity. What’s more, choice of front, rear and bottom paper paths gives you even more control over desk space management.
Epson LQ-2190 Dot Matrix Printer Specifications
Printing Technology:
Print Method:Impact dot matrixControl Panel:6 switches and 10 LEDs are located on the panelPrint Direction:Bi-direction with logic seekingNumber of Pins in Head:24 pinsControl Code:ESC/P2 and IBM PPDS emulation
Print Speed:
High Speed Draft:10 cpi: 480 cps
12 cpi: 576 cpsDraft:10 cpi: 360 cps
12 cpi: 432 cps
15 cpi: 540 cps
(Condensed) 17 cpi: 308 cps
(Condensed) 20 cpi: 360 cpsLetter Quality:10 cpi: 120 cps
12 cpi: 144 cps
15 cpi: 180 cps
(Condensed) 17 cpi: 205 cps
(Condensed) 20 cpi: 240 cps
Reliability:
MVBF:40 million lines (except print head)MTBF:20,000 Power On Hours (POH) (25% Duty)Printhead Life:400 million strokes/wire
Print Characteristics:
Character Sets:14 international character sets and one legal character sets. 1 Italic and 12 graphical character tables: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), BRASCII, Abicomp, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts:Epson Draft / Epson Courier: 10cpi, 12cpi, 15cpi; Epson Roman / Epson Sans Serif: 10cpi, 12cpi, 15cpi, Proportional; Epson Prestige: 10cpi, 12cpi; Epson Script / OCR-B / Orator / Orator-S / Epson Script C: 10cpi, ProportionalScalable Fonts:Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt. – 32pt. (every 2pt.)Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path:
Manual Insertion:Front or Rear In, Top outPush Tractor:Front of Rear In, Top outPull Tractor:Front or Rear or Bottom in, Top out
Paper Media:
Cut Sheet (Single Sheet):Front Entry: Length: 148 – 420mm (5.8″ – 16.5″), Width: 100 – 420mm (3.9″ – 16.5″), Thickness: 0.065 – 0.14mm (0.0025″ – 0.0055″)
Rear Entry: Length: 100 – 420mm (3.9″ – 16.5″), Width: 100 – 420mm (3.9″ – 16.5″), Thickness: 0.065 – 0.14mm (0.0025″ – 0.0055″)Cut Sheet (Multi-part Forms):Front Entry: Length: 148 – 420mm (5.8″ – 16.5″), Width: 100 – 420mm (3.9″ – 16.5″), Thickness: 0.12 – 0.46mm (0.0047″ – 0.018″) (Total)
Rear Entry: Length: 100-420mm (3.9″ – 16.5″), Width: 100 – 420mm (3.9″ – 16.5″), Thickness: 0.12 – 0.46mm (0.0047″ – 0.018″) (Total)
Copies: 1 Original + 5 CopiesEnvelopes:Thickness: 0.16 – 0.52mm (0.0063″ – 0.0205″) (Total)Envelope (No.6):Rear Entry: Length: 92mm (3.6″), Width: 165mm (6.5″), Thickness: 0.16 – 0.52mm (0.0063 – 0.020″) (Total)Envelope (No.10):Rear Entry: Length: 105mm (4.1″), Width: 241mm (9.5″), Thickness: 0.16 – 0.52mm (0.0063 – 0.020″) (Total)Continuous Paper (Single Sheet):Front, Rear, Bottom Entry: Length: 101.6 – 558.8mm (4.0″ – 22.0″), Width: 101.6 – 406.4mm (4.0″ – 16.0″), Thickness: 0.065 – 0.46mm (0.0025″ – 0.018″) (Total)
Copies: 1 Original + 5 CopiesContinuous Paper (Multi-part Forms):Front, Rear, Bottom Entry: Length: 101.6 – 558.8mm (4.0″ – 22.0″), Width: 101.6 – 406.4mm (4.0″ – 16.0″), Thickness: 0.065 – 0.46mm (0.0025″ – 0.018″) (Total)
Copies: 1 Original + 5 CopiesLabel (Base Sheet):Bottom Entry: Length: 101.6 – 558.8mm (4.0″ – 22.0″), Width: 101.6 – 406.4mm (4.0″ – 16.0″), Thickness: 0.16 – 0.19mm (0.0063″ – 0.0075″) (Total)Card:Front, Rear Entry: Length: 148 – 200mm (5.8 – 7.8″), Width: 100 – 200mm (3.9 – 7.8″), Thickness: 0.22mm (0.0087″)Roll Paper:Rear Entry: Diameter: 127mm (5.0″), Width: 216mm (8.5″), Thickness: 0.07 – 0.09mm (0.0028 – 0.0035″)Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
General:
Memory Buffer:128 KB
Supported OS and Applications:
Supported OS:Microsoft® Windows® 2000 / XP / Vista / 7 / 8 / 8.1 / 10Utility:Epson Status Monitor 3 (Microsoft® Windows® 2000 / XP / Vista / 7 / 8) Epson Printer Setting (Microsoft® Windows® 2000 / XP / Vista / 7 / 8)
Dimensions and Weight:
Dimensions (W x D x H):639 x 402 x 256 mmWeight:13kg
Consumables:
Ribbon Cartridge Black:Approx. 15 million characters *2 – C13S015531
Options:
Options:Epsonnet 10/100 Base TX Int.Printer Server – C12C824352
Pull Tractor Unit – C12C800322
Serial I/F Card No Buffer Type-B – C824432
Environmental Conditions (Operating):
Temperature:5 – 35°C (Operating*2), 15 – 25°C (Operating*2 *3)Humidty:10 – 80% RH (Operating*2), 30 – 60% RH (Operating*2 *3)
Acoustic Noise:
Acoustic Noise:54 dB
Interface:
Interface:Bi-directional Parallel Interface (IEEE-1284 nibble mode supported), USB 2.0 (Full Speed), Type B I/F Level 2 (Option)
