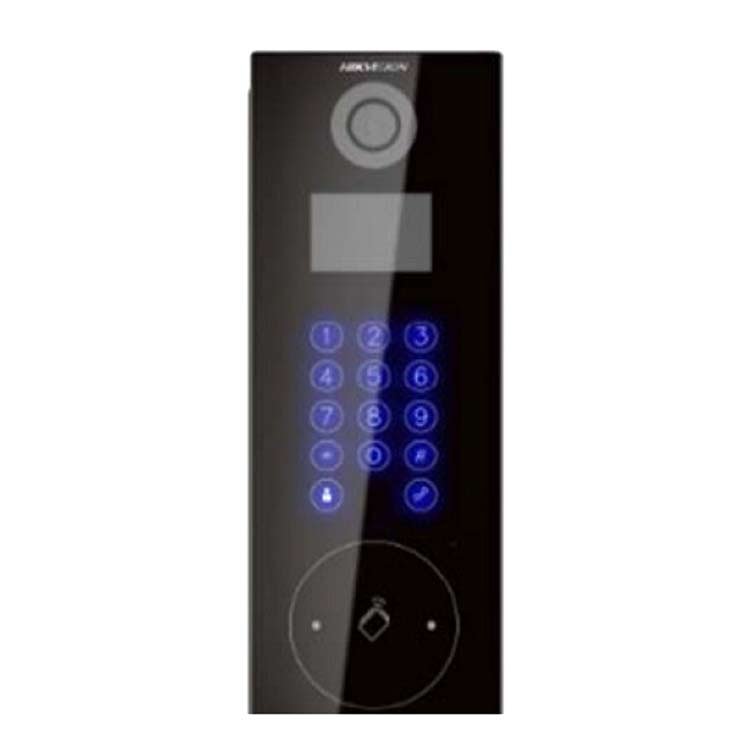

Hikvision DS-KD8102 Video intercom Door Station Mall+254
Hikvision DS-KD8102 Video intercom Door Station from the leading hikvision dealer in Nairobi Kenya, Buy online Hikvision DS-KD8102 Video intercom Door Station and have it delivered.
Hikvision DS-KD8102 Video intercom Door Station is designed to control access to some places this door station has a 1.3Â MPÂ HDÂ Color camera for facial recognition in its large LED screen.
Hikvision DS-KD8102 Video intercom Door Station has built in loud speakers that have a noise suppression and eco cancellation hence people are able to communicate without interference.
Hikvision DS-KD8102-V Door Station can help in time management as it records the time which a person reports for work and leave in the evening. it can be effective where supervision is highly recomended.
Hikvision DS-KD8102 Video intercom Door Station Specs
| SYSTEM PARAMETERS | ||
|---|---|---|
| Processor: | | | High-Performance Embedded SOC Processor |
| Operation System: | | | Embedded Linux Operation System |
| VIDEO PARAMETERS | ||
| Camera: | | | CMOS Low Illumination 1.3 MP HD Colorful Camera |
| Video Compression Standard: | | | H.264 |
| Resolution: | | | 1280 x 720 |
| Video frame rate: | | | PAL: 25 fps, NTSC: 30 fps |
| DISPLAY PARAMETERS | ||
| Display Screen: | | | 3.5-Inch Colorful TFT LCD |
| Display Resolution: | | | 480 × 320 |
| Operation Method: | | | Capacitive Touch Keypad |
| Operation interface: | | | LCD Display, Easy Menu |
| AUDIO PARAMETERS | ||
| Audio Input: | | | Built-in Omnidirectional Microphone |
| Audio Output: | | | Built-in Loudspeaker |
| Audio Compression Standard: | | | G.711Â U |
| Audio Compression Rate: | | | 64Â Kbps |
| Audio Quality: | | | Noise Suppression and Echo Cancellation |
| NETWORK PARAMETERS | ||
| Ethernet: | | | 10/100/1000 Mbps Self-Adaptive Ethernet |
| Network Protocol: | | | TCP/IP, RTSP |
| ACCESS CONTROL PARAMETERS | ||
| Internal Card Reader: | | | Built-in IC Card Reader |
| External Card Reader: | | | Wiegand 26, Wiegand 34, or RS-485 IC Reader |
| Door Magnetic Detection: | | | Detects Door Magnetic Status |
| IR HUMAN DETECTION | ||
| Approaching Detection: | | | Supporting IR Detection, Vertical Distance: from 60 cm to 80 cm |
| LIGHT SUPPLEMENT | ||
| Light Supplement Mode: | | | Visible Light Supplement |
| ALARM PARAMETERS | ||
| Alarm Input: | | | Door Magnetic Alarm, Tampering Alarm |
| DEVICE INTERFACES | ||
| Network Interface: | | | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| RS-485: | | | 1 RS-485 Half-Duplex Port |
| I/O Input: | | | 8 |
| I/O Output: | | | 4 |
| Wiegand: | | | 1 Wiegand Port for Accessing Wiegand IC Card Reader |
| USB : | | | 1 USB 2.0, Supporting U-Disk |
| GENERAL | ||
| Material: | | | Plastic |
| Power Supply: | | | 12Â VDC |
| Power Consumption: | | | ≤15 W |
| Working Temperature: | | | -40° C to 70° C (-40° F to 158° F) |
| Working Humidity: | | | 10% to 90% |
| IP Protection Level: | | | IP65 |
| Dimensions(L × W × H): | | | 418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″) |
| Certification: | | | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
