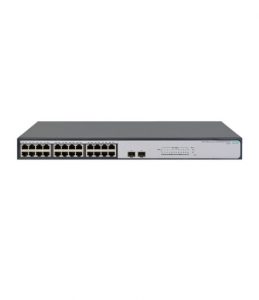

HPE Officeconnect 1420 24G 2SFP Switch Mall+254
HPE Officeconnect 1420 24G 2SFP Switch from the leading HP server dealer in Nairobi Kenya, buy online HPE Officeconnect 1420 24G 2SFP Switch and have it delivered at your doorstep.
HPE Officeconnect 1420 24G 2SFP Switch provides up to 30 W per port, which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af compliant end device; reduces the cost of additional electrical
cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments (for PoE model)
HPE OfficeConnect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small business and others looking
for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models.
HPE Officeconnect 1420 24G 2SFP Switch specifications
| HPE 1420-24G-2SFP Switch – switch – 24 ports – unmanaged – rack-mountable |
|---|
| Device Type | Switch – 24 ports – unmanaged |
|---|
| Enclosure Type | Rack-mountable 1U |
|---|
| Subtype | Gigabit Ethernet |
|---|
| Ports | 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP |
|---|
| Performance | Throughput (64-byte packet size): 38.7 Mpps ¦ Switching capacity: 52 Gbps |
|---|
| MAC Address Table Size | 8192 entries |
|---|
| Jumbo Frame Support | 9216 bytes |
|---|
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support |
|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
|---|
| Power | AC 120/230 V (50/60 Hz) |
|---|
| Dimensions (WxDxH) | 44 cm x 17.3 cm x 4.4 cm |
|---|
| Weight | 2.2 kg |
|---|
| Manufacturer Warranty | Limited lifetime warranty |
|---|
Extended Specification
| General |
|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
|---|
| Device Type | Switch – 24 ports – unmanaged |
|---|
| Enclosure Type | Desktop, rack-mountable 1U |
|---|
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Quality of Service (QoS), fanless, 512KB packet buffer, DiffServ Code Point (DSCP) support |
|---|
| Flash Memory | 1 MB |
|---|
| Jumbo Frame Support | 9216 bytes |
|---|
| MAC Address Table Size | 8192 entries |
|---|
| Performance | Throughput (64-byte packet size): 38.7 Mpps ¦ Switching capacity: 52 Gbps |
|---|
| Ports | 24 x 10/100/1000 + 2 x Fast Ethernet/Gigabit SFP |
|---|
| Subtype | Gigabit Ethernet |
|---|
| Dimensions & Weight |
|---|
| Depth | 17.3 cm |
|---|
| Height | 4.4 cm |
|---|
| Weight | 2.2 kg |
|---|
| Width | 44 cm |
|---|
| Environmental Parameters |
|---|
| Humidity Range Operating | 5 – 95% (non-condensing) |
|---|
| Humidity Range Storage | 5 – 95% (non-condensing) |
|---|
| Max Operating Temperature | 40 °C |
|---|
| Max Storage Temperature | 70 °C |
|---|
| Min Operating Temperature | 0 °C |
|---|
| Min Storage Temperature | -40 °C |
|---|
| Expansion / Connectivity |
|---|
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP |
|---|
| Manufacturer Warranty |
|---|
| Service & Support | Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – phone consulting – 3 years |
|---|
| Miscellaneous |
|---|
| Compliant Standards | CISPR 24, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, CISPR 22, CSA 22.2 No. 60950, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A |
|---|
| MTBF | 126.1 years |
|---|
| Power |
|---|
| Power Device | Internal power supply |
|---|
| Voltage Required | AC 120/230 V (50/60 Hz) |
|---|
