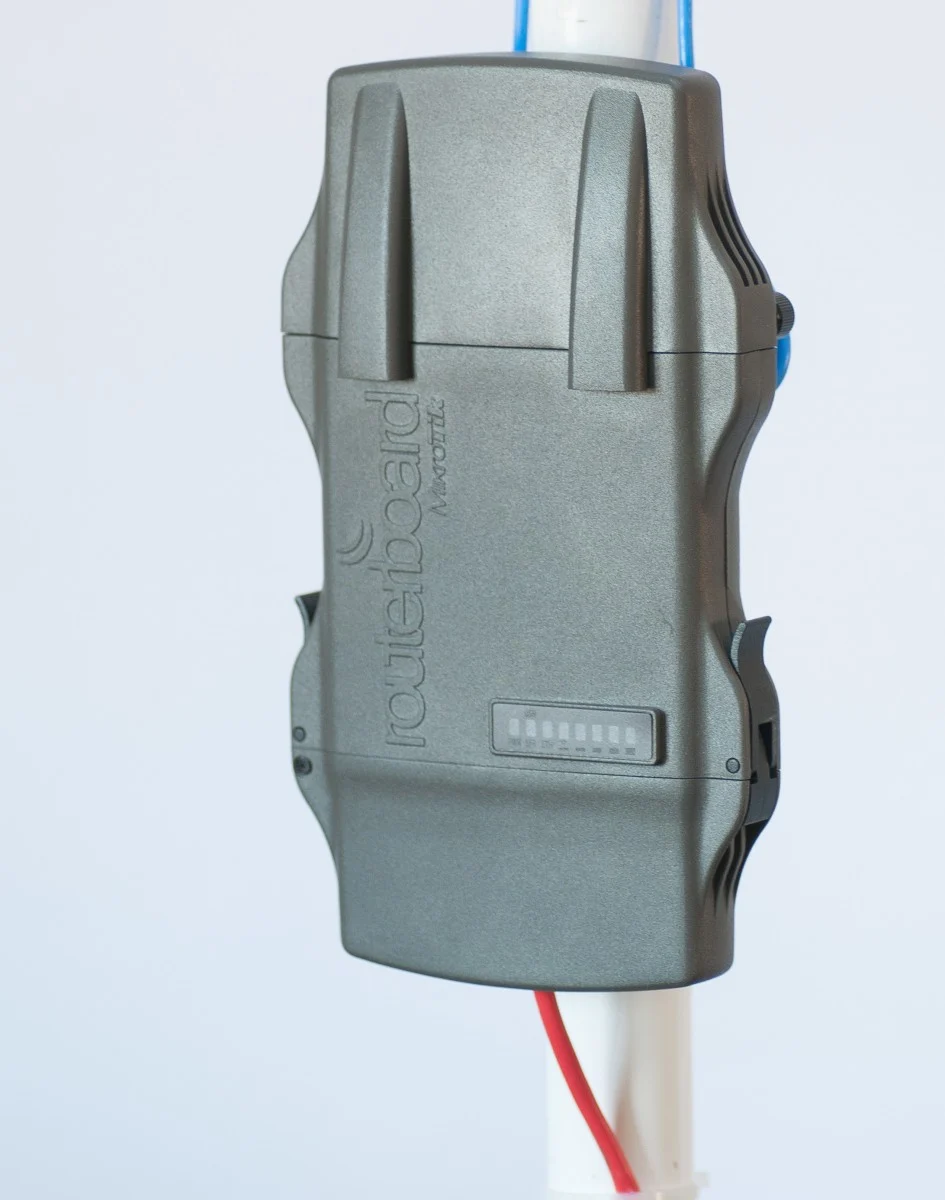

MikroTik NetMetal 5 RB922UAGS-5HPacT-NM RouterBoard Mall+254
MikroTik NetMetal 5 RB922UAGS-5HPacT-NM RouterBoard from the leading mikrotik net metal 5 dealers in Nairobi Kenya, buy online Mikrotik NetBox-5 RB911G-5HPacD-NB Access Point
Mikrotik NetBox-5Â Access Point is weatherproof device hence can be erected outside as it cant be affected by rain or wind, its casing can be opened with one hand hence simplicity when installing it, it has 128 MB RAM and 128 MB storage.
NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
NetMetal version is equipped with a miniPCI-express slot, a SIM slot for 3G/4G device or additional wireless card, a high power 3×3 triple chain 802.11ac wireless and three RP-SMA connectors for external antennas
Specs
| Details |
|---|
| Product code | RB922UAGS-5HPacT-NM |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 143x247x48mm (PCB) |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $159.00 |
Powering
| Details |
|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 23 W |
Wireless
| Details |
|---|
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details |
|---|
| SFP DDMI | yes |
| SFP ports | 1 |
Peripherals
| Details |
|---|
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 32 | -96 |
| MCS7 | 29 | -77 |
| MCS9 | 24 | -72 |
