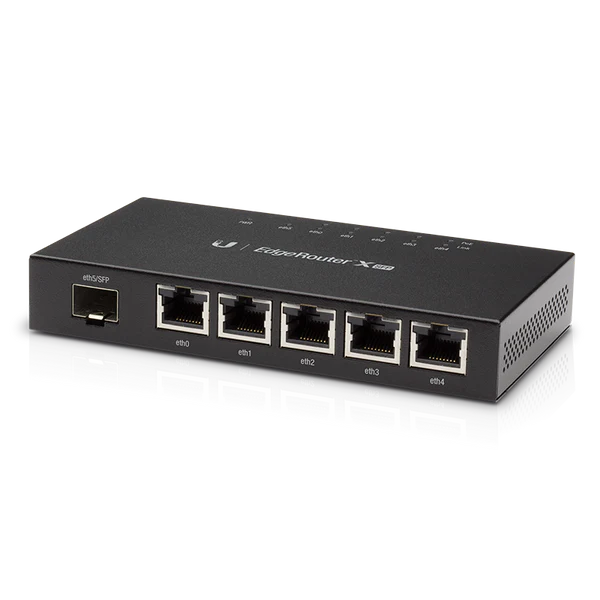

Ubiquiti ER-X 5-Port single Passive PoE Edgerouter X Mall
Ubiquiti ER-X 5-Port single Passive PoE Edgerouter X comes equipped with a total of five Gigabit Ethernet ports: one data/PoE input port, three data ports, and one data/PoE passthrough port. Inside the router, you will find a 880 MHz dual-core processor along with 256 MB of DDR3 RAM and 256 MB of NAND code storage.
5-Port ER-X PoE Edgerouter X combines carrier-class reliability with enterprise-level features in a compact and affordable unit. Available in a rackmountable form factor with eight functional ports, the EdgeRouter Pro and 8-Port EdgeRouter models are capable of routing up to 2 million+ packets per second.
ER-X PoE Edgerouter X Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network.
5-Port ER-X PoE Edgerouter X advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
ER-X, can be powered by an external power adapter or 24V passive PoE input. A passive PoE passthrough option1 is available to support a single airMAX device.
ER-X-SFP, router Xis powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for airMAX or UniFi devices, while its SFP port provides fiber connectivity to support backhaul applications.
ER-X PoE Edgerouter X Powered by a proprietary and intuitive graphical interface, EdgeOS, every EdgeRouter X can easily be configured for the routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
ER-X PoE Edgerouter X specifications
|Dimensions||110 x 75 x 22 mm (4.33 x 2.95 x 0.87″)|
|Weight||175 g (6.17 oz)|
|Max. Power Consumption||5 W|
|Power Input||12VDC, 0.5A Power Adapter (Included) or 24V Passive PoE|
|Power Supply||External AC/DC Adapter|
|Supported Voltage Range||9 to 26VDC|
|LED||Power, Ethernet 0-4|
|Processor||Dual-Core 880 MHz, MIPS1004Kc|
|System Memory||256 MB DDR3 RAM|
|Code Storage||256 MB NAND|
|Certifications||CE, FCC, IC|
|ESD/EMP Protection||Air: ± 24 kV, Contact: ± 24 kV|
|Operating Temperature||-10 to 45°C (14 to 113°F)|
|Operating Humidity||10 – 90% Non-Condensing|
|Data/PoE Input Port||(1) 10/100/1000 RJ45 Port|
|Data Ports||(3) 10/100/1000 RJ45 Ports|
|Data/PoE Passthrough Port||(1) 10/100/1000 RJ45 Port|
